封装形式 塑封体尺寸(mm) 脚间距(mm) 引脚数量 参考图片 外形图 模板图 生产能力(万只/月)

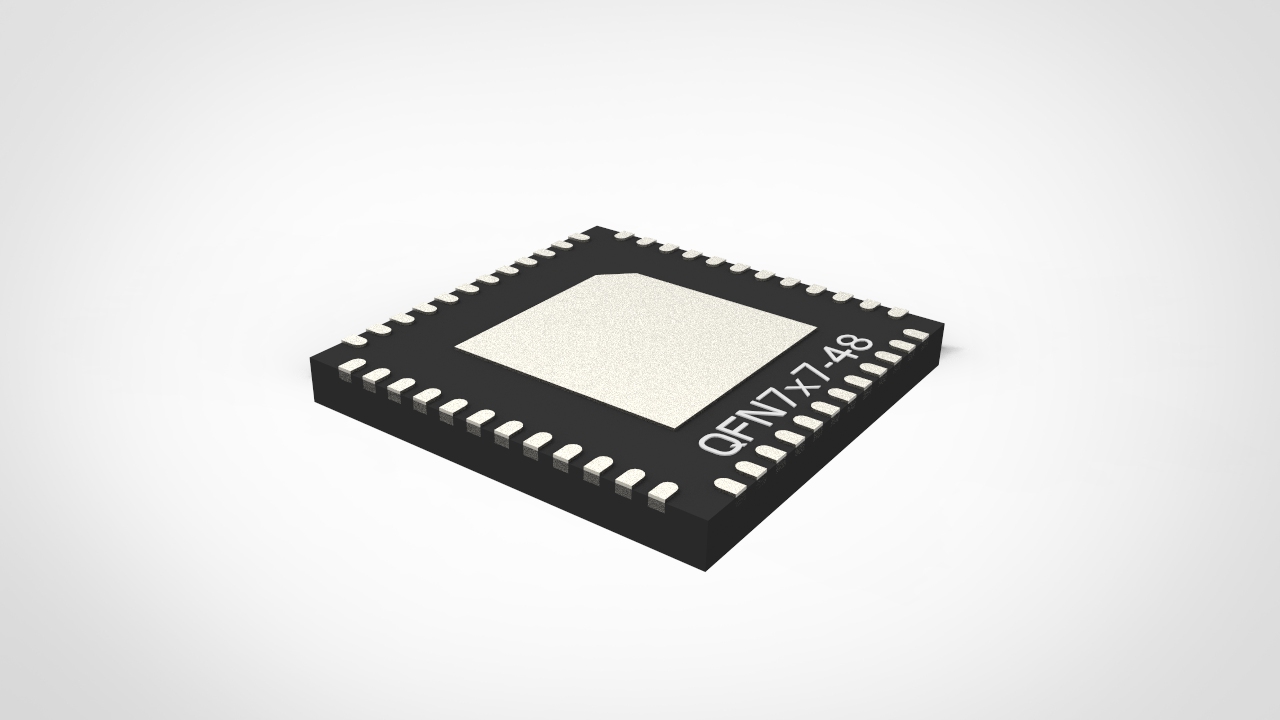

QFN7X7-48L 7.00*7.00*0.75 0.5 48

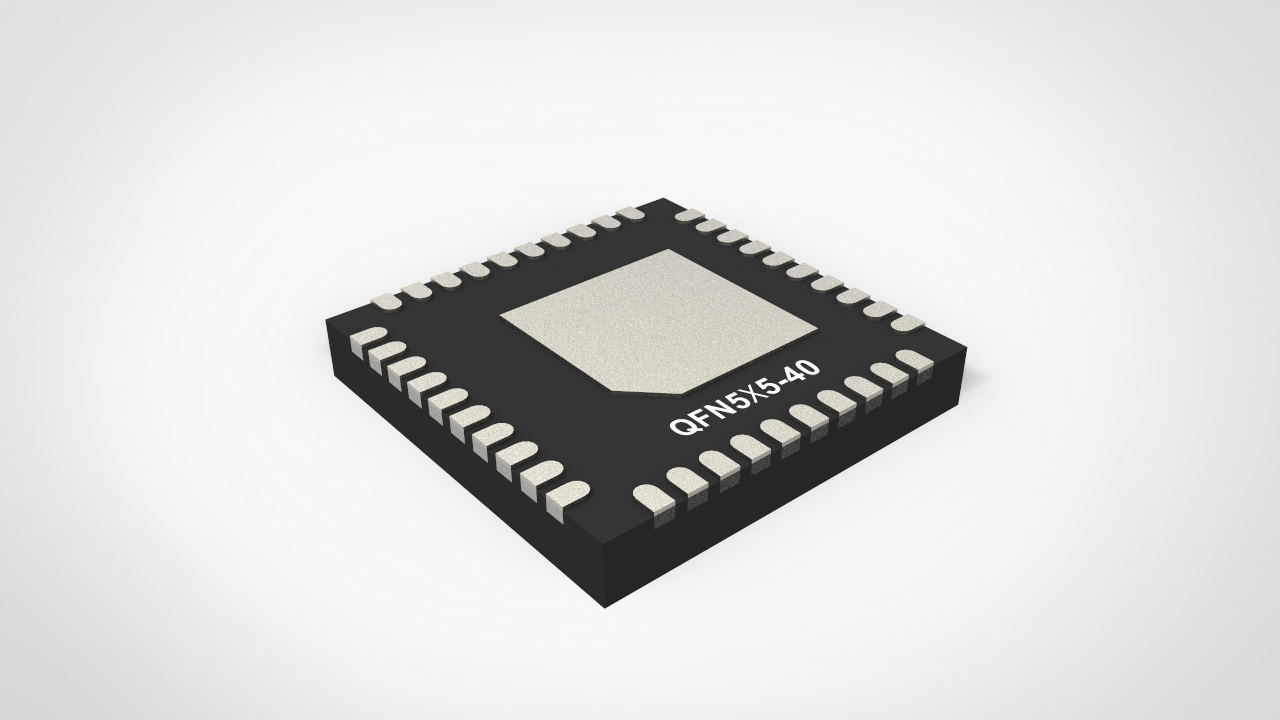

QFN5X5-40L 5.00*5.00*0.75 0.4 40
QFN5X5-32L 5.00*5.00*0.75 0.5 32
QFN5X5-28L 5.00*5.00*0.75 0.5 28

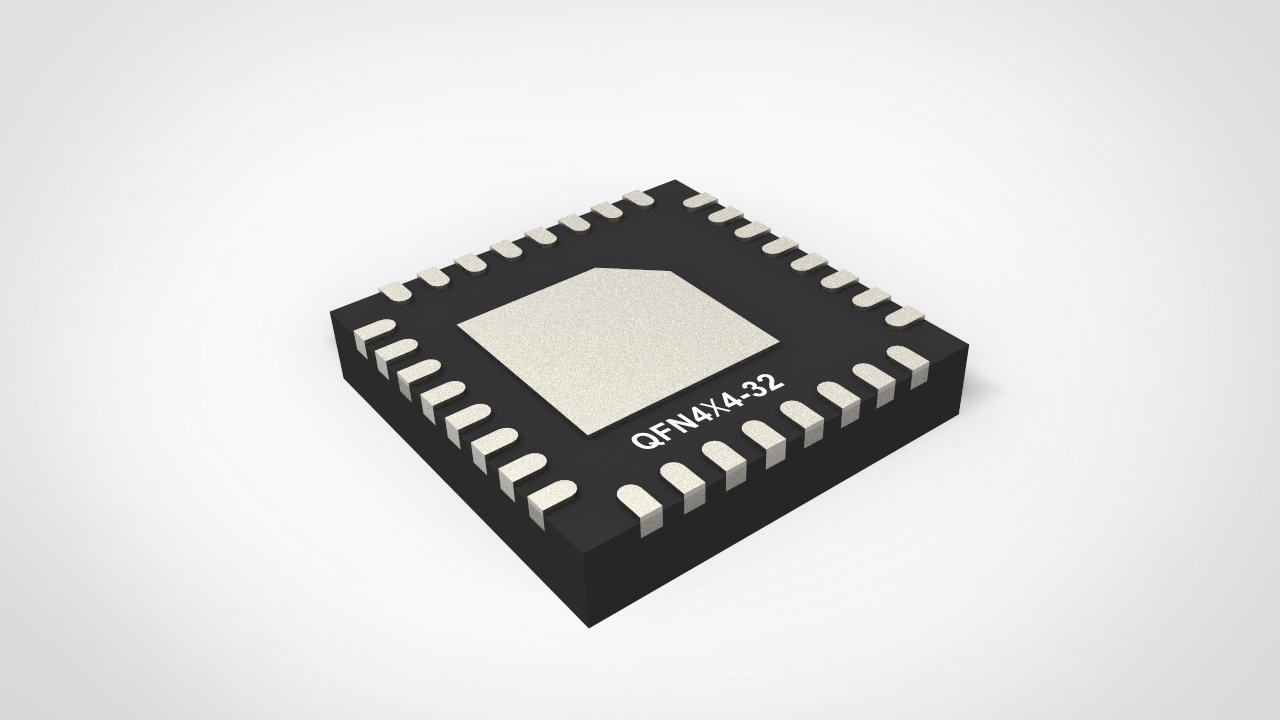

QFN4X4-32L 4.00*4.00*0.75 0.4 32
QFN4X4-28L 4.00*4.00*0.75 0.45 28

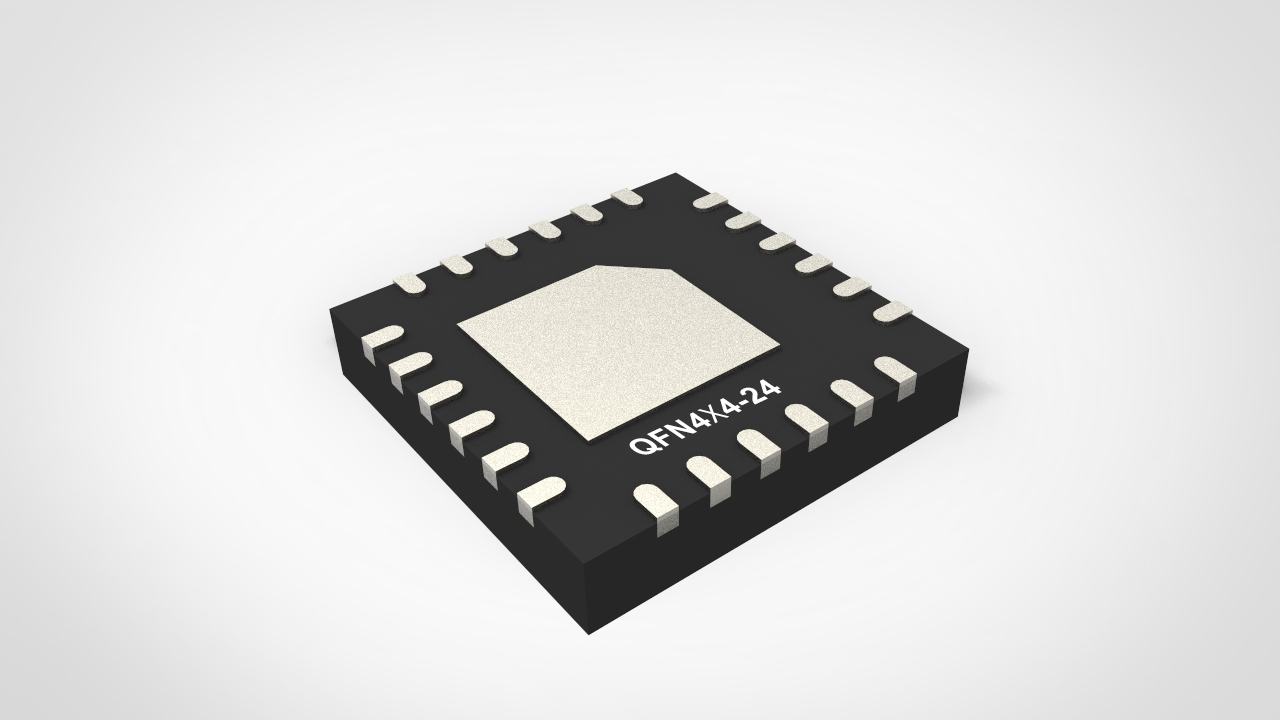

QFN4X4-24L 4.00*4.00*0.75 0.5 24
QFN4X4-20L 4.00*4.00*0.75 0.5 20

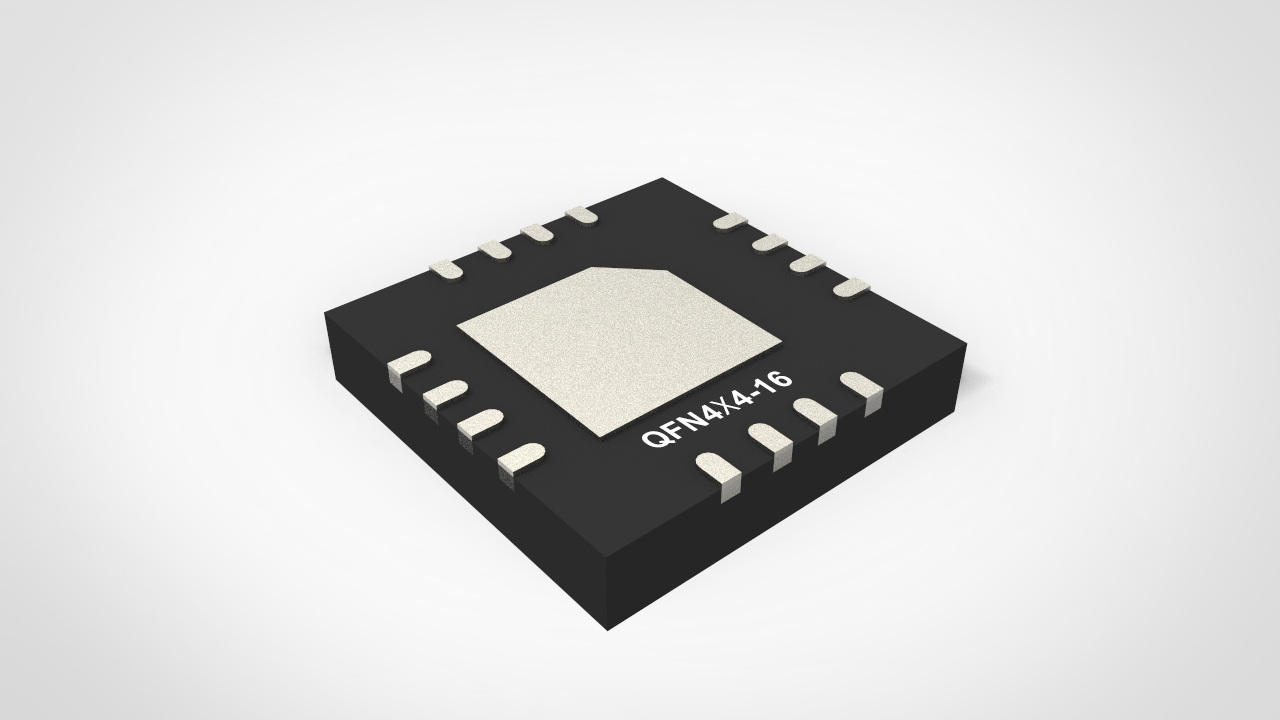

QFN4X4-16L 4.00*4.00*0.75 0.65 16
QFN3X3-20L 3.00*3.00*0.75 0.4 20

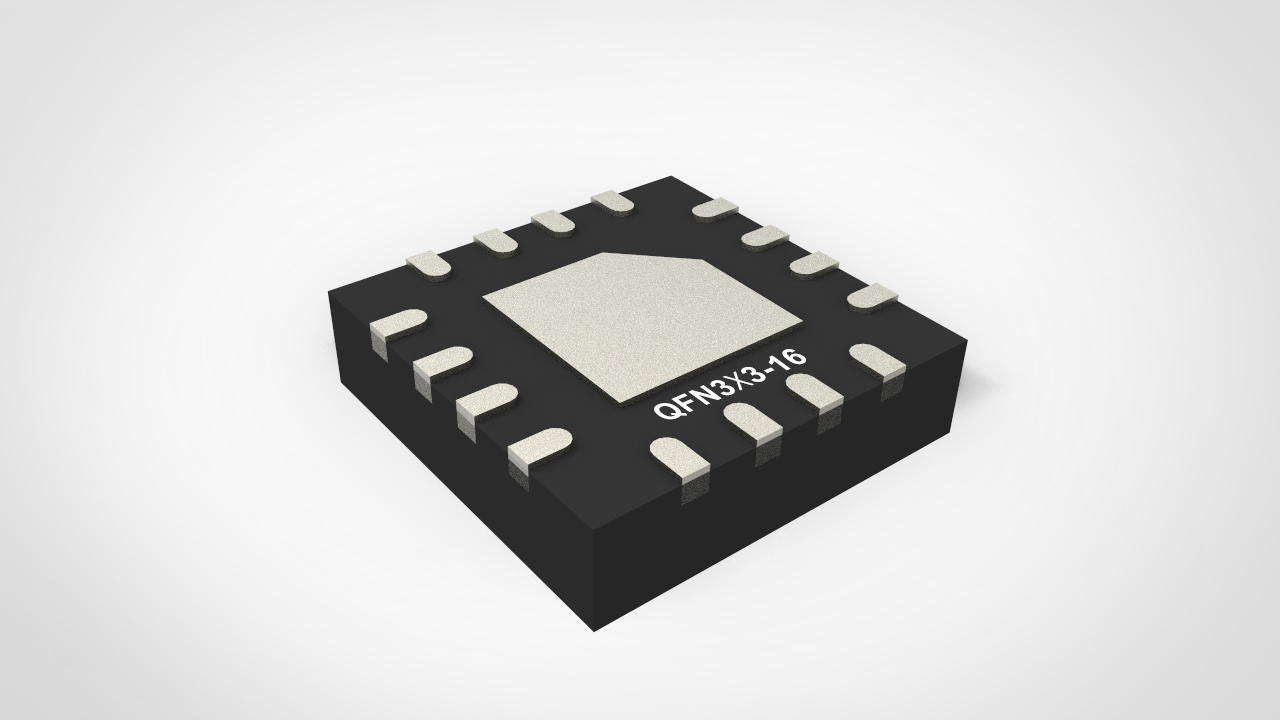

QFN3X3-16L 3.00*3.00*0.75 0.5 16

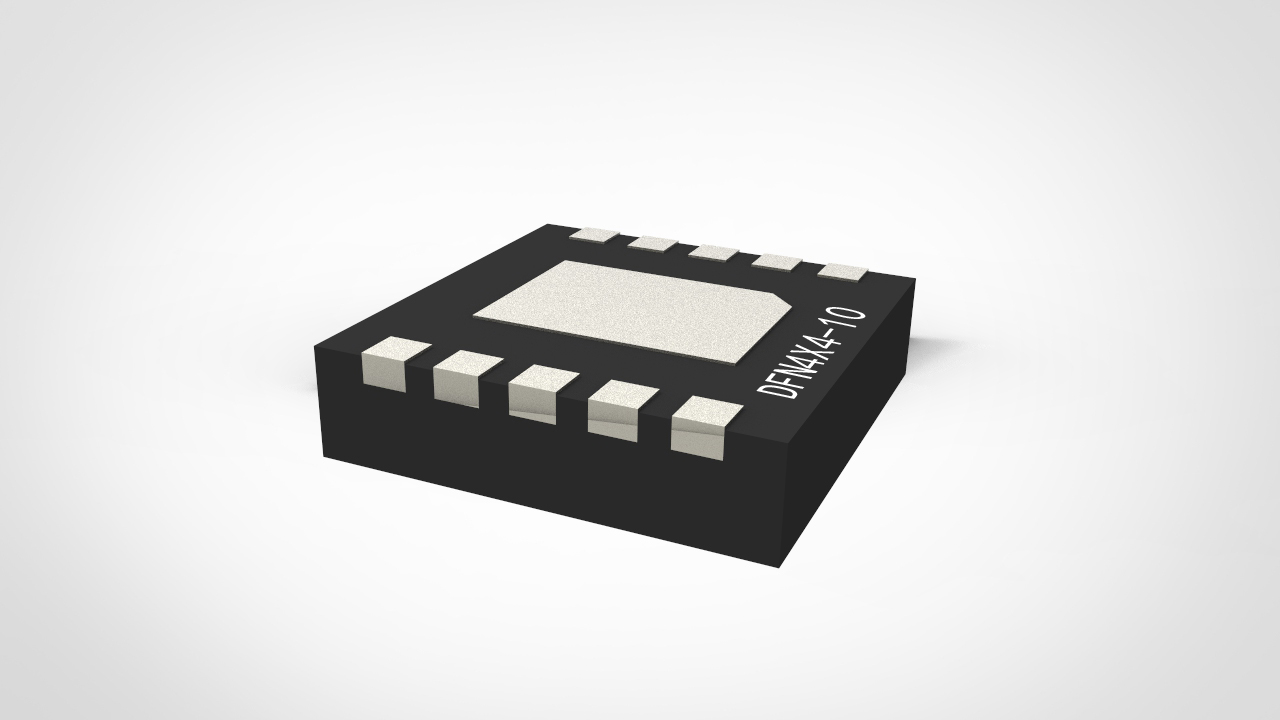

DFN4X4-10L 4.00*4.00*0.75 0.8 10
DFN3X3-10L 3.00*3.00*0.75 0.5 10
DFN3X3-8L 3.00*3.00*0.75 0.65 8
DFN2X3-8L 2.00*3.00*0.75 0.50/0.65 8
DFN2X3-6L 2.00*3.00*0.75 0.5 6

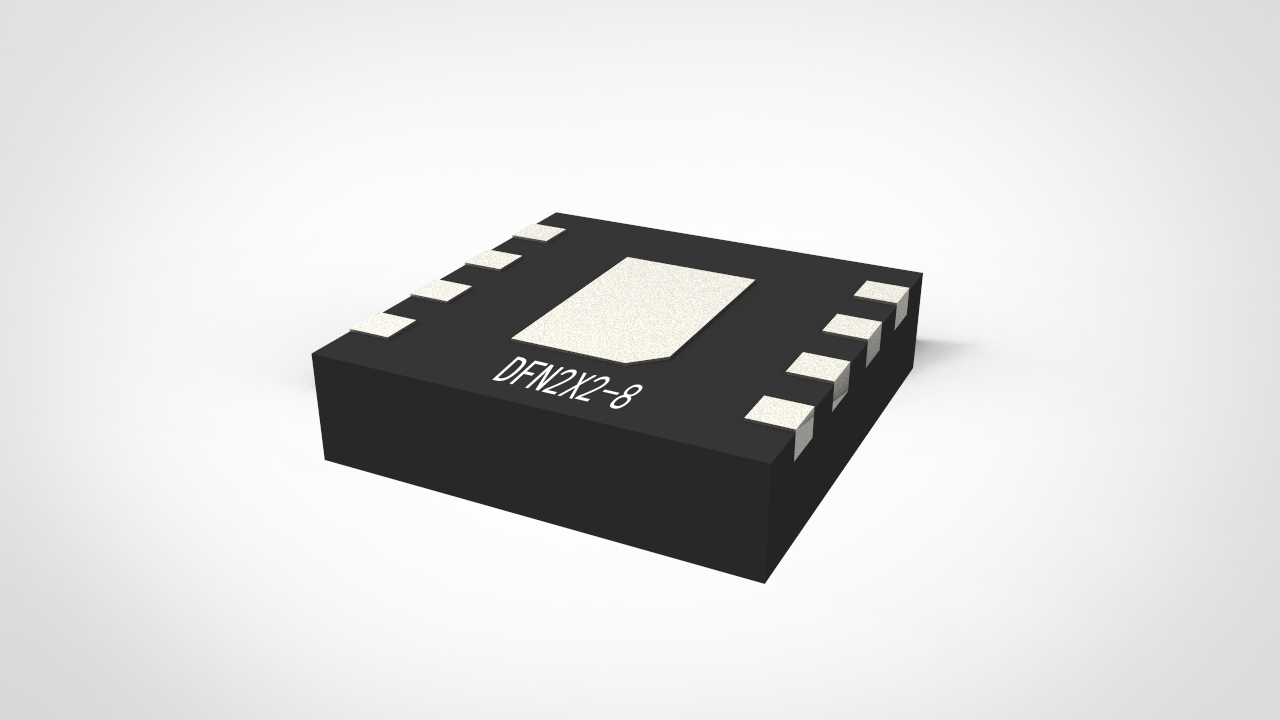

DFN2X2-8L 2.00*2.00*0.75 0.5 8

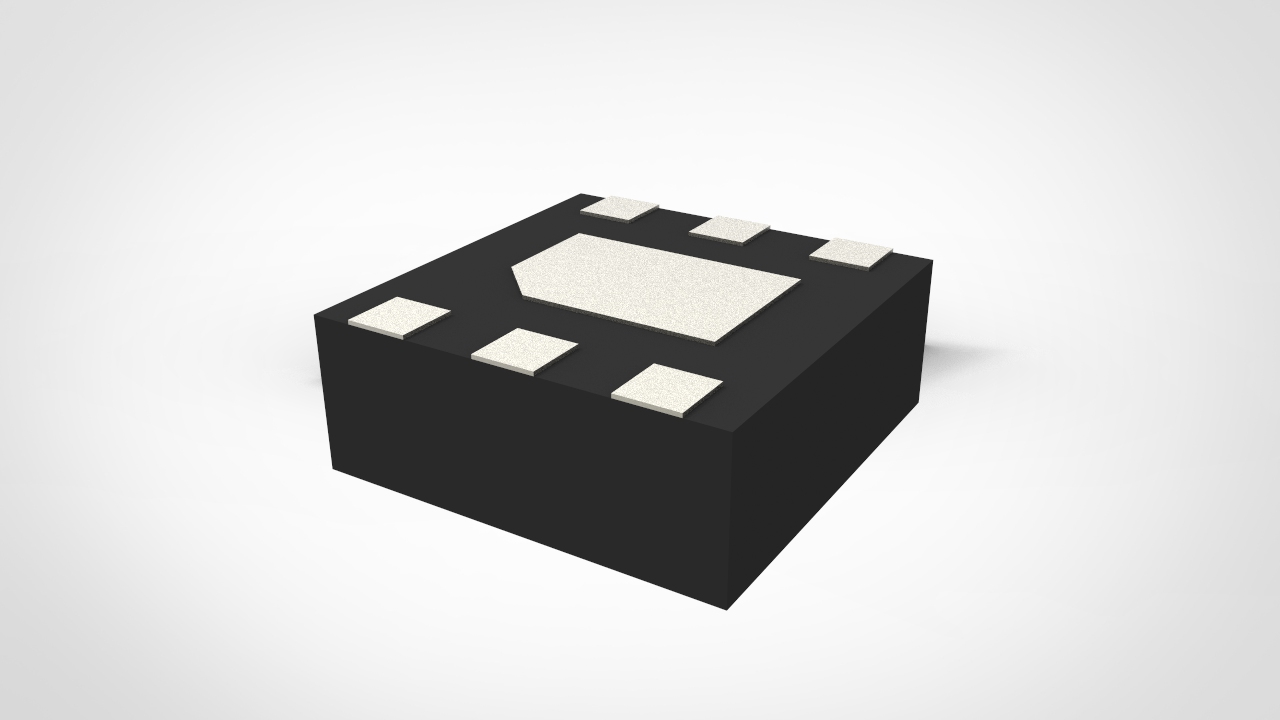

DFN2X2-6L 2.00*2.00*0.75 0.65 6

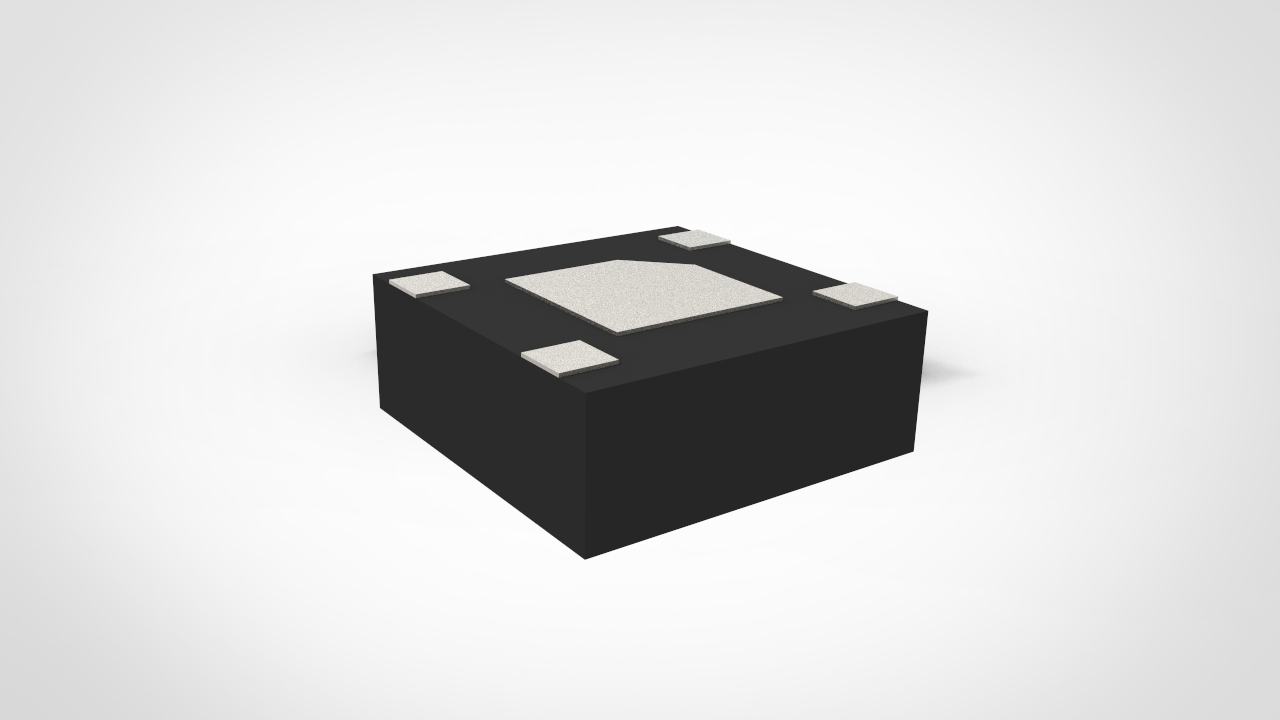

DFN2X2-4L 2.00*2.00*0.75 1.3 4
DFN1X1-4L 1.00*1.00*0.37 0.65 4
DFN1006-3L 1.00*0.60*0.50 0.65 3
DFN1006-2L 1.00*0.60*0.50 0.65 2

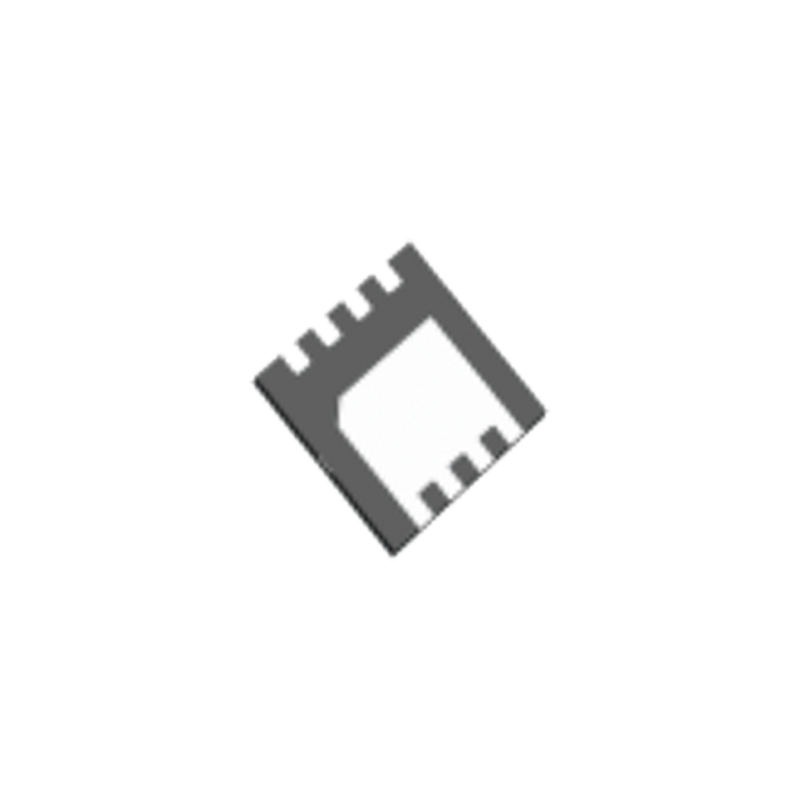

PDFN3333 3.30*3.30*0.75 0.65 8

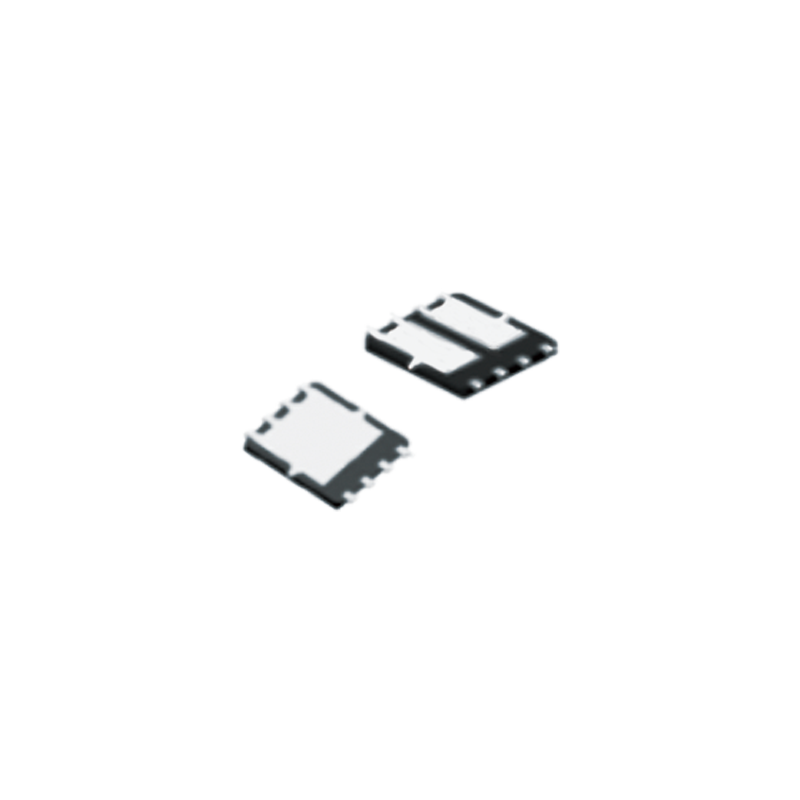

PDFN5X6 5.00*6.00*1.10 1.27 8

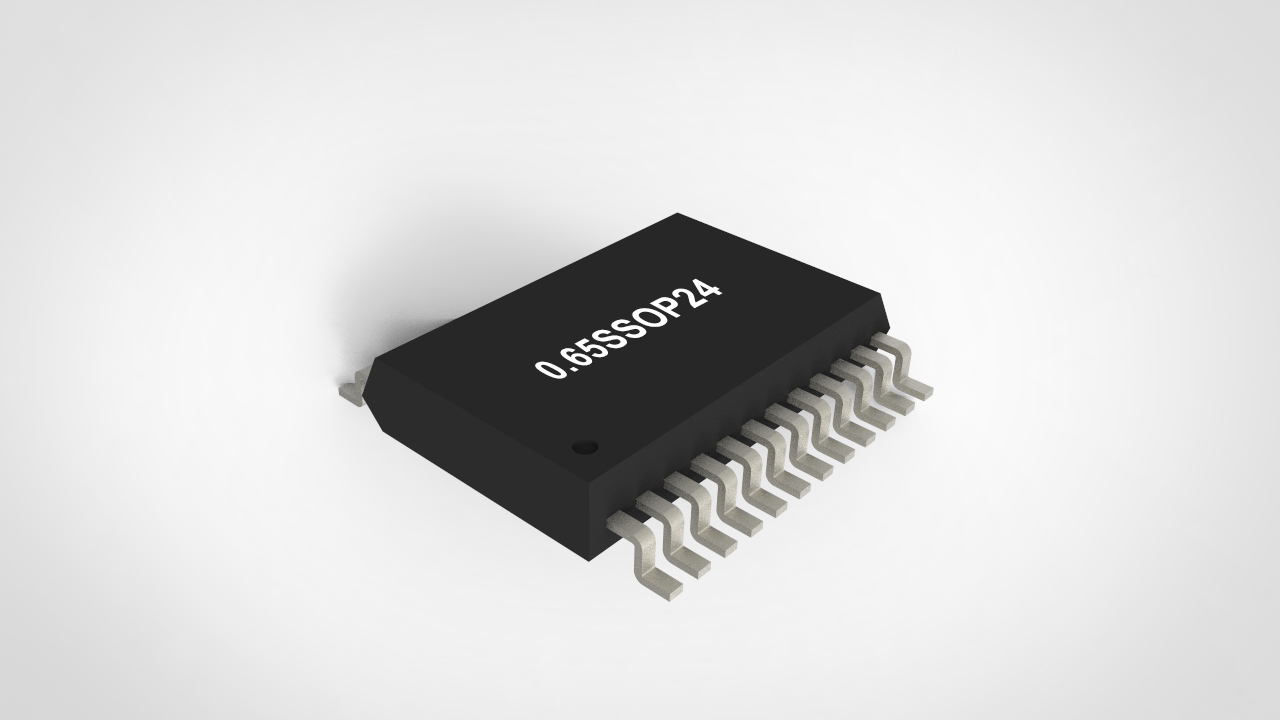

SSOP24
TO-251 6.10*6.60*2.30 2.29 2
TO-220F 15.87*10.16*4.70 2.54 3

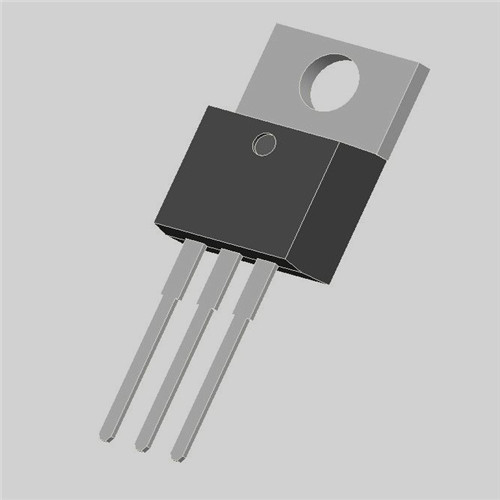

TO-220 9.20*9.88*4.57 2.54 3
TO-252 6.10*6.60*2.30 2.29 2
TO-263 9.20*9.88*4.57 2.54 2
TSSOP8 4.40*3.00*0.90 0.65 8
BPSOP-10 8.60*3.90*1.40 1.27/3.80 10
SOP20 12.70*7.50*2.25 1.27 20

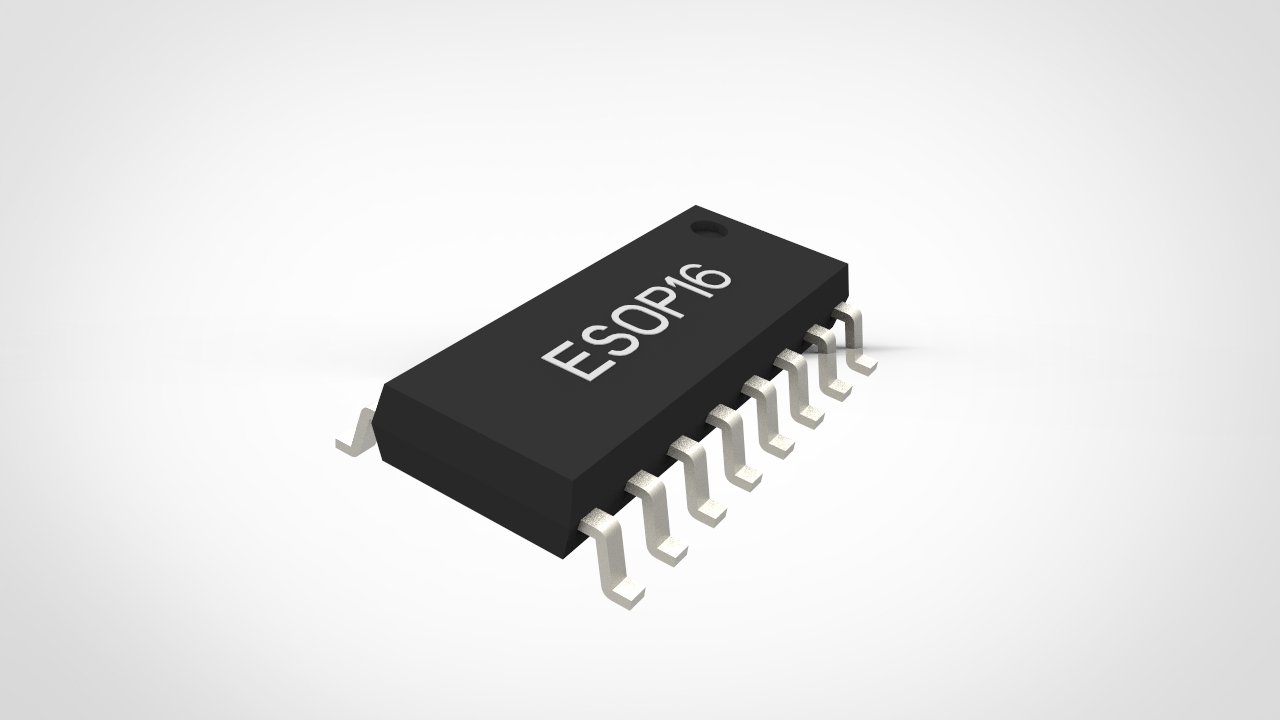

ESOP16 9.90*3.90*1.40 1.27 16

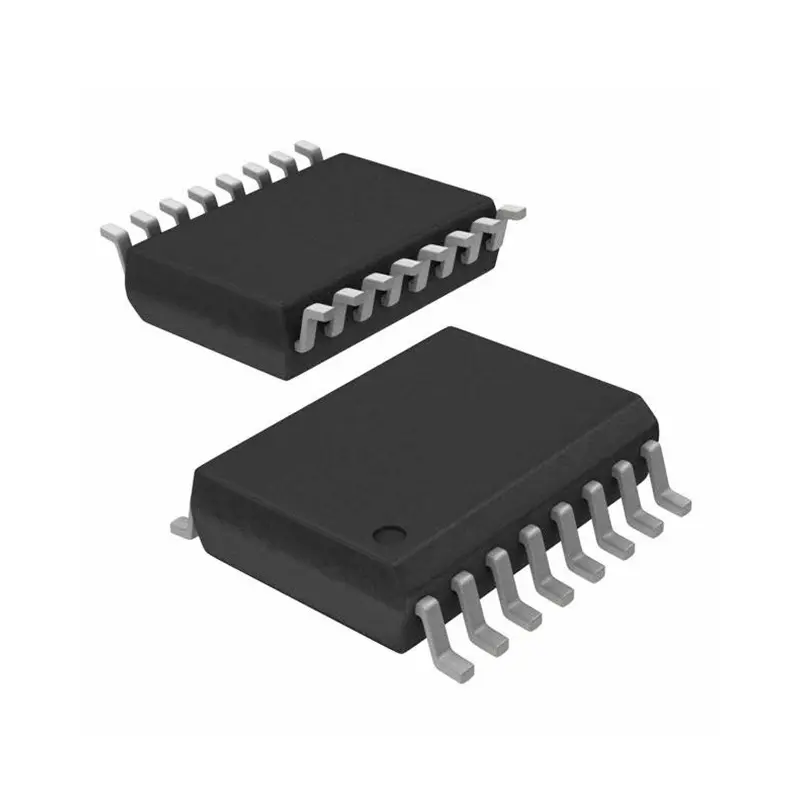

SOP16 9.90*3.90*1.40 1.27 16
SOP14 8.60*3.90*1.40 1.27 14
ESOP8 4.90*3.90*1.45 1.27 8
SOP7 4.90*3.90*1.45 1.27 7

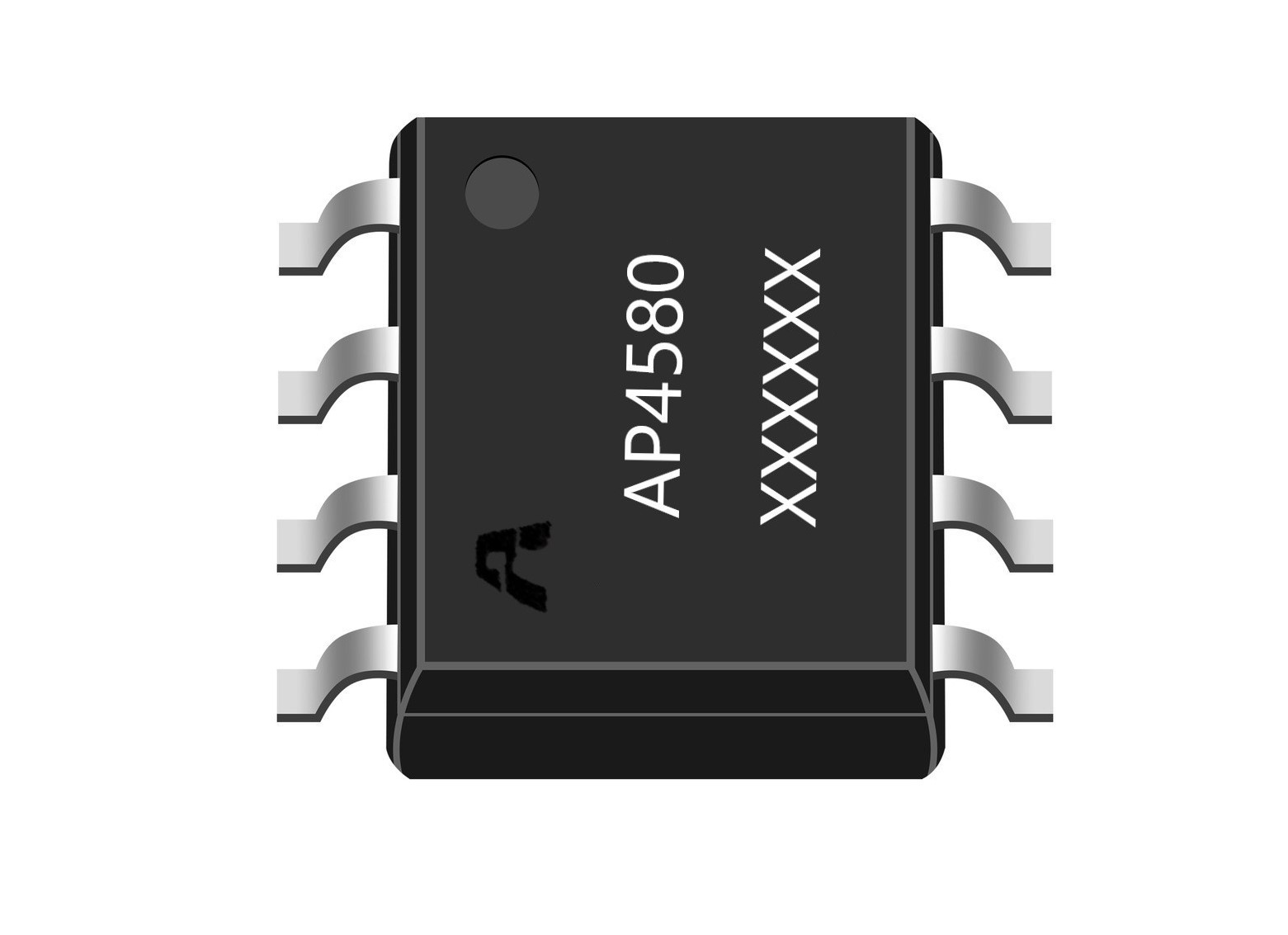

SOP8 4.90*3.90*1.45 1.27 8
SOT-223 6.50*3.50*1.60 2.3 3

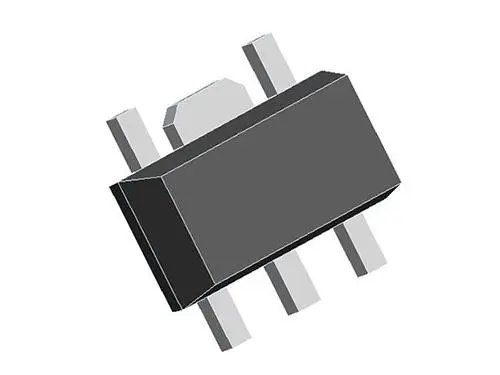

SOT89-5L 4.55*2.55*1.50 1.5 5
SOT89-3L 4.55*2.55*1.50 1.5 3
SOT23-6L 2.90*1.60*1.10 0.95/1.90 6
SOT23-5L 2.90*1.60*1.10 0.95/1.90 5

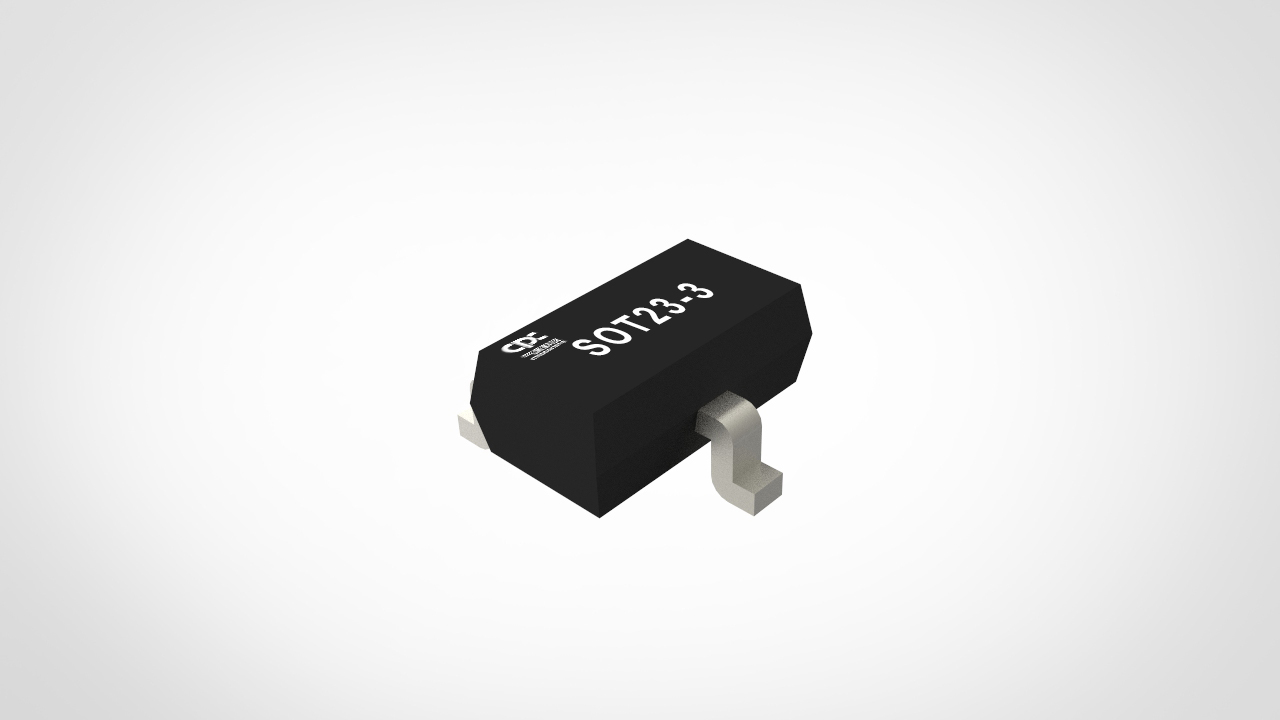

SOT23-3L 2.90*1.60*1.10 0.95/1.90 3

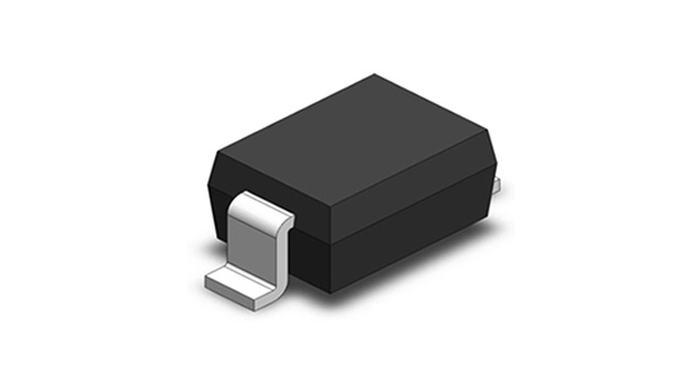

SOD-323 1.70*1.30*0.85 - 2
SOD-123 2.70*1.60*1.10 - 2
SOT-363 2.10*1.25*0.95 0.65 6
SOT-353 2.10*1.25*0.95 0.65/1.30 5
SOT-323 2.10*1.25*0.95 0.65/1.30 3
SOT-23 2.90*1.30*1.00 0.95/1.90 3
